Quill Shuttles





Summer 2018 update: (08/11/2018)

Custom run started spring of 2018 completed 1st week of August 2018. There are a few spare quill shuttles (4) created from this run. Photos are posted below.

Quill shuttles are typically used in Scandinavian weaving or on looms with narrow sheds. Quills are economical – they may be purchased or made from stiff paper. Quills hold more yarn than a bobbin of comparable size and are quieter to use. Many weavers prefer the use of quills for better selvedges.

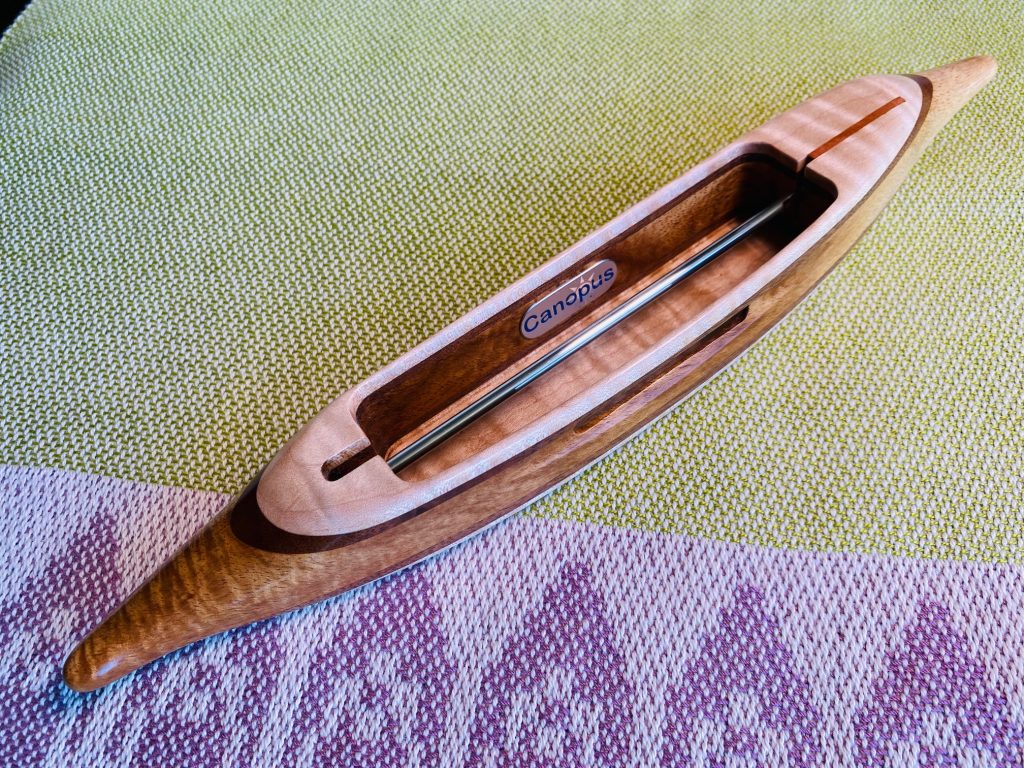

Canopus Quill shuttles are made up of 3 (or rarely 5) layers of figured hardwoods, typically combinations of bird’s eye maple, tiger maple, curly cherry, curly white oak,  black walnut, koa, mango, and honey locust. Shuttles are highly contoured and fine sanded to 2000-grit with 10 coats of finish applied. A 3.5mm polished stainless steel rod fits standard cardboard quills, and operates up & down using an internal spring mechanism. Extremely hard Brazilian ebony, or sometimes lignum vitae inserts are placed at either end of the yarn slot to reduce wear from abrasive yarns like linen and hemp. The spring slot on top is covered either with ebony (black) or pink ivory (red).  In the shuttle descriptions below, we list the shuttle weight, L,W,H, length from the end of the cavity to the tip of the shuttle for either end (this is important to some weavers), and quill length handled by shuttle (4″ or 6″).  Damask shuttles are less than 3/4″ height.

s2018Qbemapltmapl1: Bird's eye maple top/bottom, tiger maple center. Lignum Vitae yarn slot inserts. 4.1oz., 16 1/2″L, 1 1/2″W, 3/4 ″H, 4  3/4″ tip to nearest cavity end. Fits 6″ quills.
s2018Qbemapltmapl1: Bird’s eye maple top/bottom, tiger maple center.
Lignum Vitae yarn slot inserts. 4.1oz., 16 1/2″L, 1 1/2″W, 3/4 ″H, 4
3/4″ tip to nearest cavity end. Fits 6″ quills.

s2018Qbemapltmapl1bottom view.
s2018Qbemapltmapl1bottom view.

s2018Qbemapltmapl2: Bird's eye maple top/bottom, honey locust center layers, tiger maple center. Lignum Vitae yarn slot inserts. 3.8 oz., 15 1/4″L, 1 1/2″W, 13/16 ″H, 4″ tip to nearest cavity end. Fits 6″ quills.
s2018Qbemapltmapl2: Bird’s eye maple top/bottom, honey locust center
layers, tiger maple center. Lignum Vitae yarn slot inserts. 3.8 oz., 15
1/4″L, 1 1/2″W, 13/16 ″H, 4″ tip to nearest cavity end. Fits 6″ quills.

s2018Qbemapltmapl2 bottom view.
s2018Qbemapltmapl2 bottom view.

s2018Qmesqtmapl3: Mesquite top/bottom, ash burl center. Lignum Vitae yarn slot inserts. 4.1 oz., 16″L, 1 1/2″W, 3/4 ″H, 4 1/2″ tip to nearest cavity end. Fits 6″ quills.
s2018Qmesqtmapl3: Mesquite top/bottom, ash burl center. Lignum
Vitae yarn slot inserts. 4.1 oz., 16″L, 1 1/2″W, 3/4 ″H, 4 1/2″ tip to
nearest cavity end. Fits 6″ quills.

s2018Qmesqtmapl3 bottom view.
s2018Qmesqtmapl3 bottom view.

s2018Qbemapltmapl4: Bird's eye maple top/bottom, tiger maple center. Lignum Vitae yarn slot inserts. 4.0 oz., 15 1/4″L, 1 1/2″W, 3/4 ″H, 4 1/8″ tip to nearest cavity end. Fits 6″ quills.
s2018Qbemapltmapl4: Bird’s eye maple top/bottom, tiger maple center.
Lignum Vitae yarn slot inserts. 4.0 oz., 15 1/4″L, 1 1/2″W, 3/4 ″H, 4
1/8″ tip to nearest cavity end. Fits 6″ quills.

s2018Qbemapltmapl4 bottom view.
s2018Qbemapltmapl4 bottom view.
